Hydrology · Geospatial 2023

Haro River Basin —
Watershed & HRU Analysis

Watershed delineation, terrain characterization, and hydrologic response unit (HRU) analysis of the Haro River Basin using ArcSWAT, ArcGIS and Google Earth Engine — supporting catchment-scale water resource modeling and land-management decisions.

Location Haro River Basin, Pakistan
Tools ArcSWAT · ArcGIS · GEE
Data Sources SRTM DEM · Landsat · MODIS
Output Watershed Maps · HRU Analysis
01 — Spatial Analysis Maps

Cartographic outputs from the ArcGIS / ArcSWAT workflow.

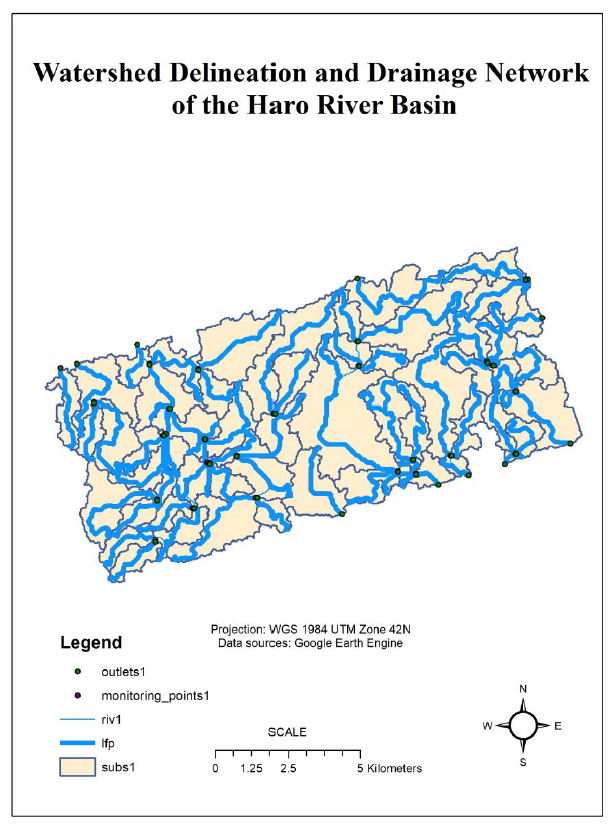

Watershed Delineation and Drainage Network of the Haro River Basin
Watershed Delineation & Drainage Network Sub-basins, stream orders, and monitoring points.

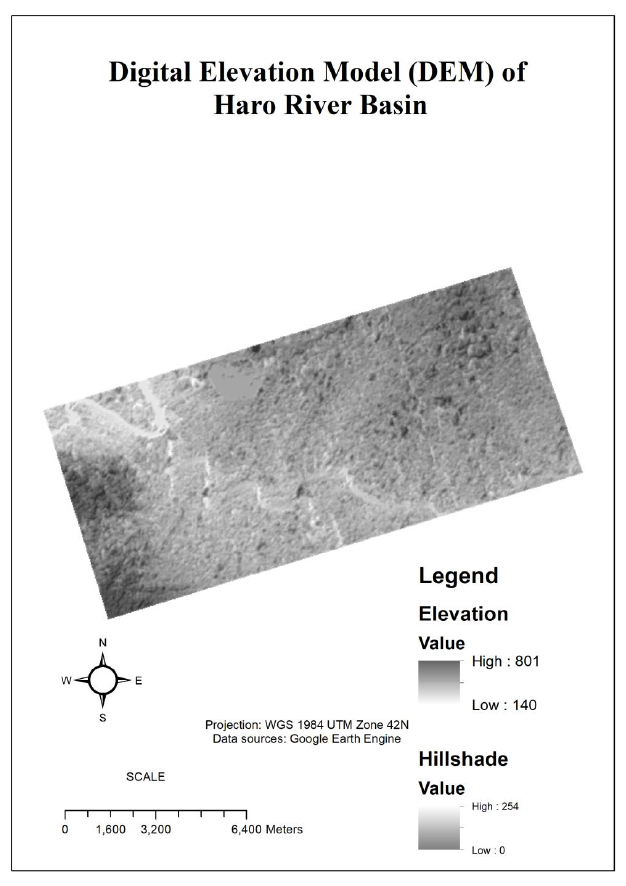

Digital Elevation Model (DEM) of Haro River Basin
Digital Elevation Model (DEM) Elevation 995–3011 m with hillshade rendering.

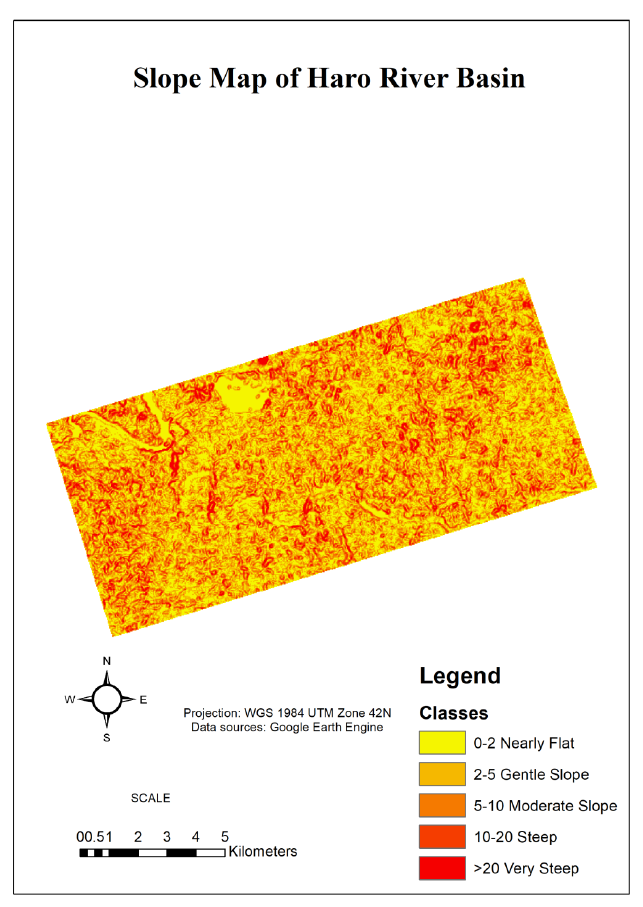

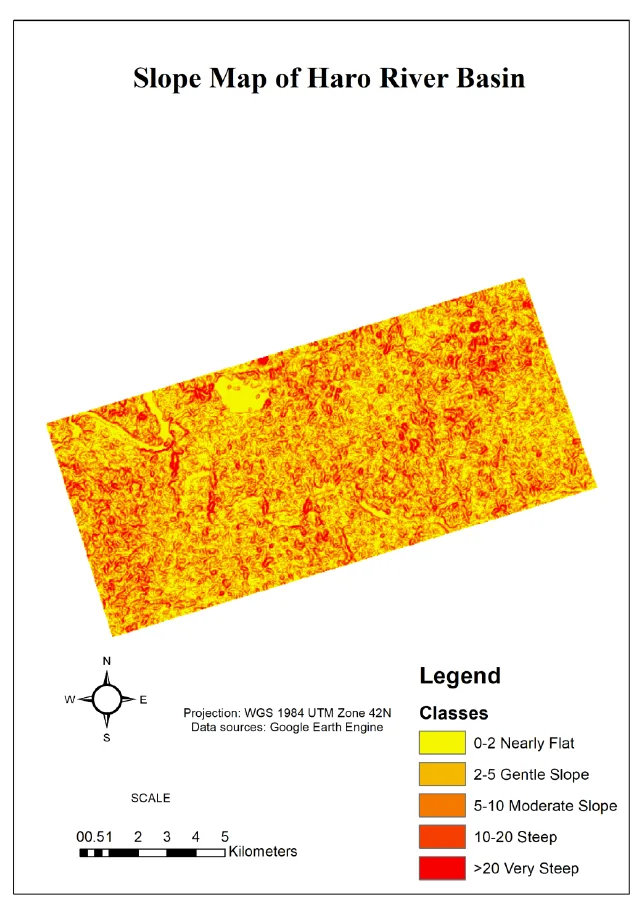

Slope Map of Haro River Basin
Slope Map Slope classes from nearly flat to very steep terrain.

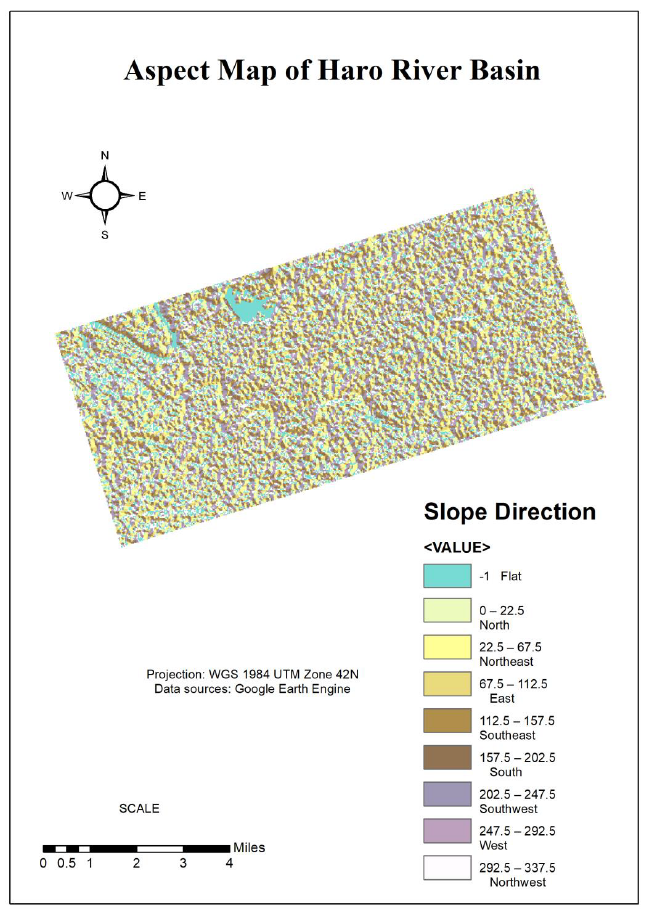

Aspect Map of Haro River Basin
Aspect Map Flow direction across the basin in 8 cardinal classes.

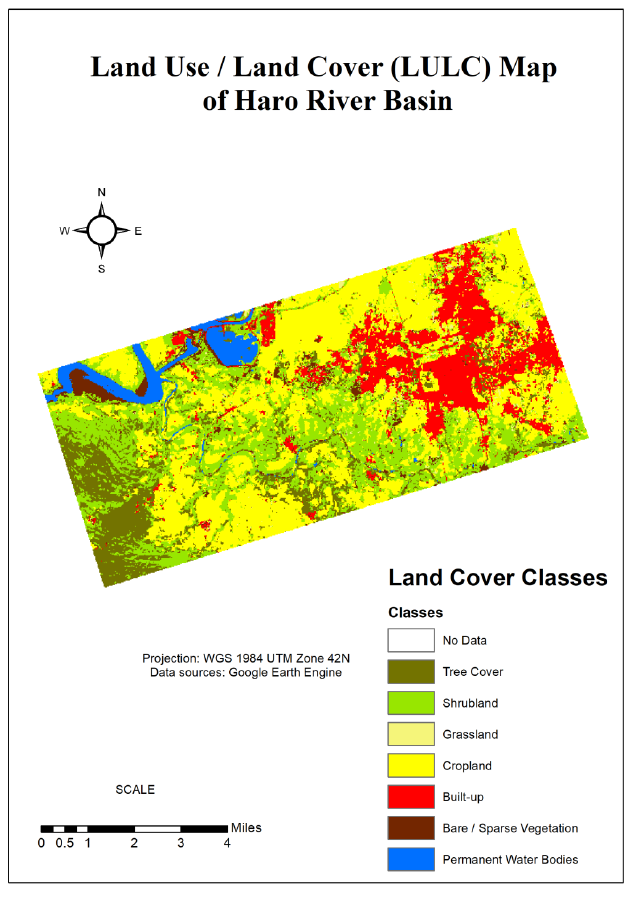

Land Use / Land Cover (LULC) Map of Haro River Basin
Land Use / Land Cover Land cover structured, grassland, impervious, built-up, bare and water bodies.

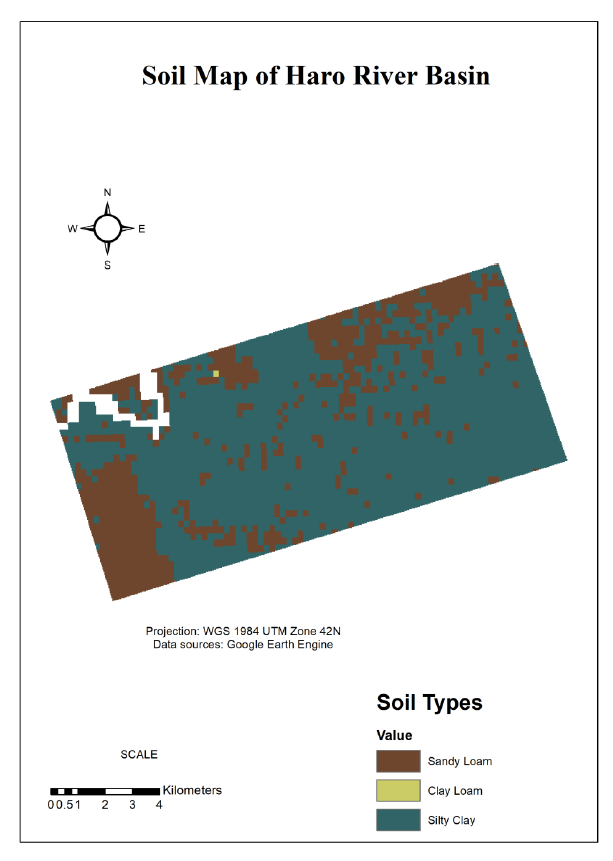

Soil Map of Haro River Basin
Soil Map Dominant soil types: Sandy Loam, Clay Loam and Silty Clay.
02 — Quantitative Results

Land use, soil composition, and sub-basin area extents.

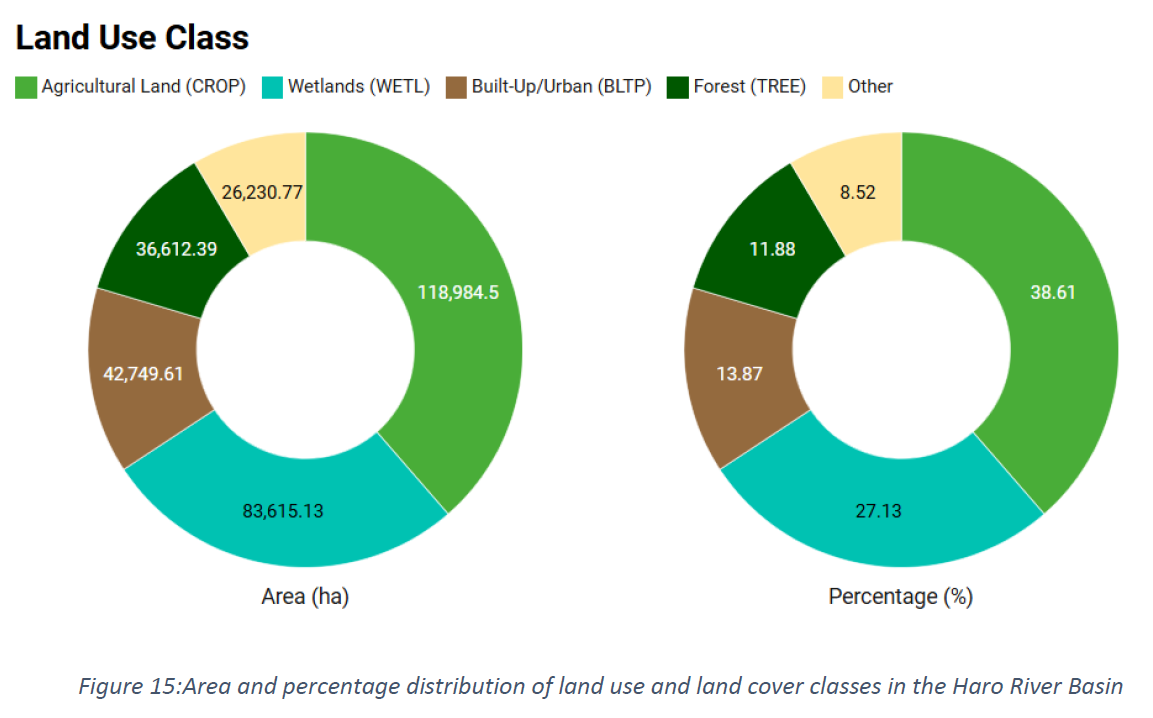

Land Use Class

Area and percentage distribution of land use and land cover classes in the Haro River Basin.

Land Use Class Distribution

Bar and percentage for LULC class across the basin.

Land use class distribution bar chart

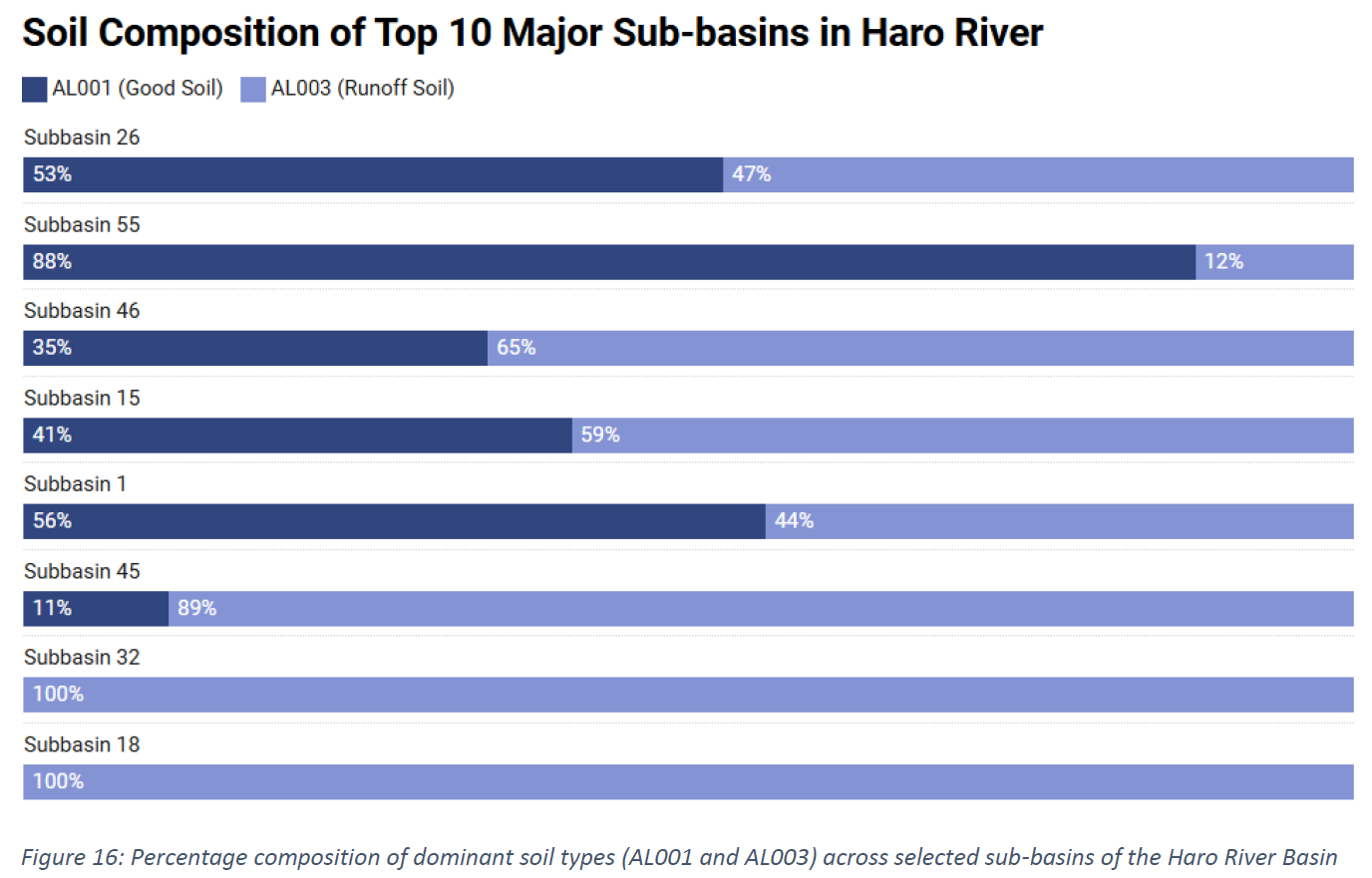

Soil Composition of Top 10 Major Sub-basins in Haro River

Bar and percentage for soil types (Al002 and Al003) across selected sub-basins of the Haro River Basin. Al002 percent and its Al003 (sandy loam) percentage split.

Soil composition bar chart for top 10 sub-basins

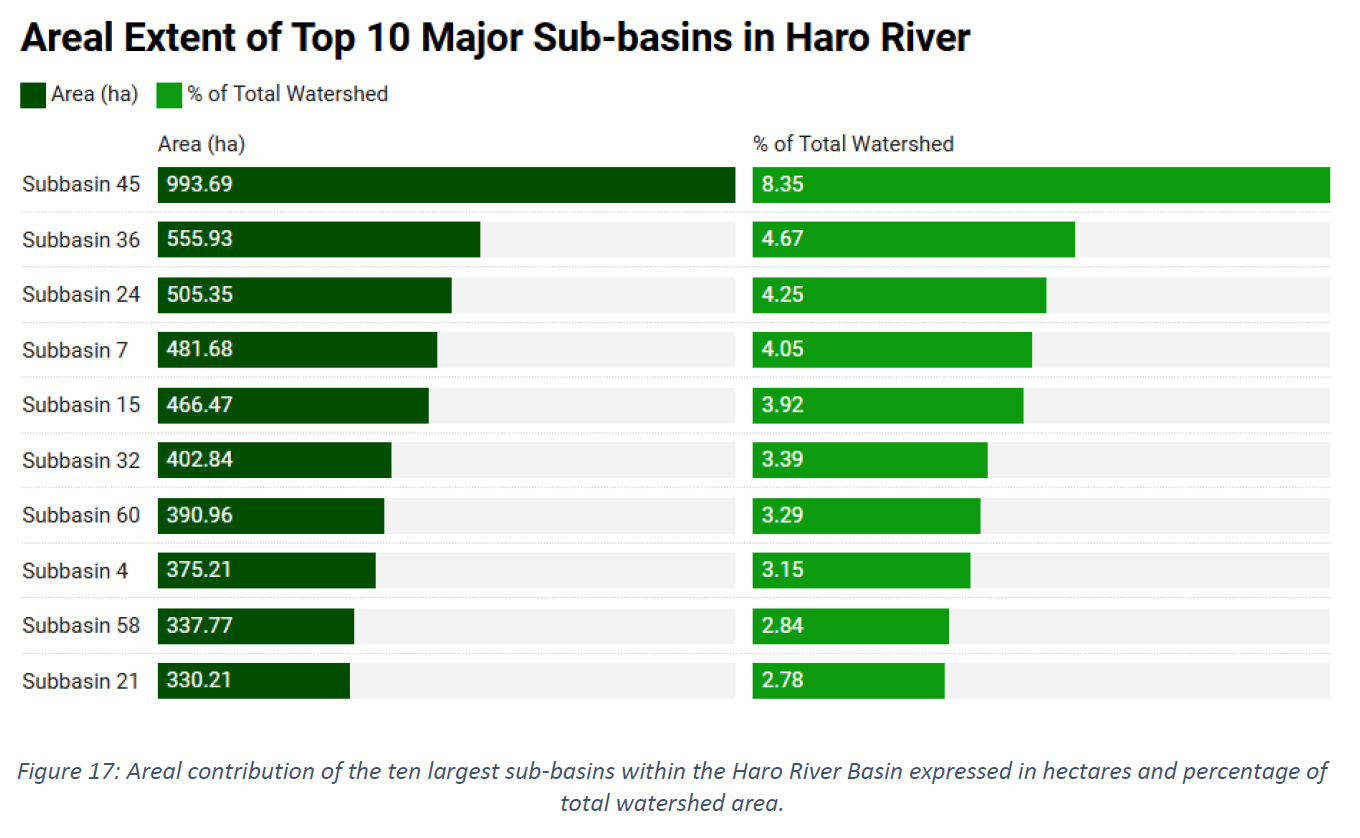

Areal Extent of Top 10 Major Sub-basins in River

Absolute area and % of total watershed for the ten largest sub-basins, with both tabular and visual bar representation.

Areal extent table and bar chart for top 10 sub-basins
03 — Summary

From raw elevation data
to basin-scale intelligence.

The Haro River Basin was delineated into 854 sub-basins using SRTM-derived DEM data, with drainage networks, slope gradients, and aspect maps produced via ArcSWAT. Terrain analysis reveals predominantly gentle-to-moderate slopes punctuated by steep zones, while LULC mapping shows agricultural land (38.4%) and wetlands (21%) as the dominant cover types. Soil mapping is dominated by Silty Clay with significant Sandy Loam patches — directly influencing runoff potential at the sub-basin level. Hydrologic response units integrate slope, soil and land-use into a cohesive modelling framework for downstream water-yield and sediment transport simulations.

Full Project Report Haro River Basin — Complete Watershed & HRU Analysis
View Full PDF Report
